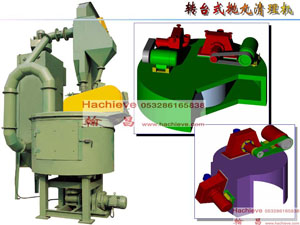

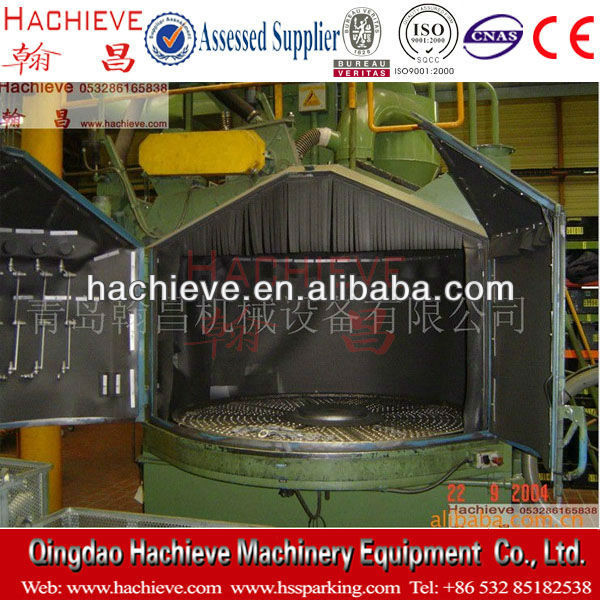

Q3516 Turntable shotblasting strengthen cleaning machine
The series of shot blasting strengthening cleaning machine is mainly used for surface cleaning and strengthening of the internal and external surfaces of the engine connecting rod, cylindrical gear, the outer wall of the artillery shell clutch friction plates, disc teeth and other parts, is widely used in the foundry, automotive, Arsenal State Key industries. It has high production efficiency, good sealing effect, compact structure, convenient upper and lower parts, high technical content
Technical Parameter
|
Main technical parameter
|
Cleaning workpiece size （mm）
|
350*400
|
|
Big turntable size（mm）
|
1600
|
|
Small turntable size（mm）
|
300
|
|
Lifting amount of elevating conveyor（T/h）
|
45
|
|
Separating amount of separator（T/h）
|
45
|
|
Amount of shotblsting（Kg/min）
|
300*2
|
|
Dust removing volum（m/3h）
|
5000
|
|
Motor Power（Kw）
|
62.35
|
|
Outline Size
|
3730*4100*5100 （Without dust removing device）
|
|
