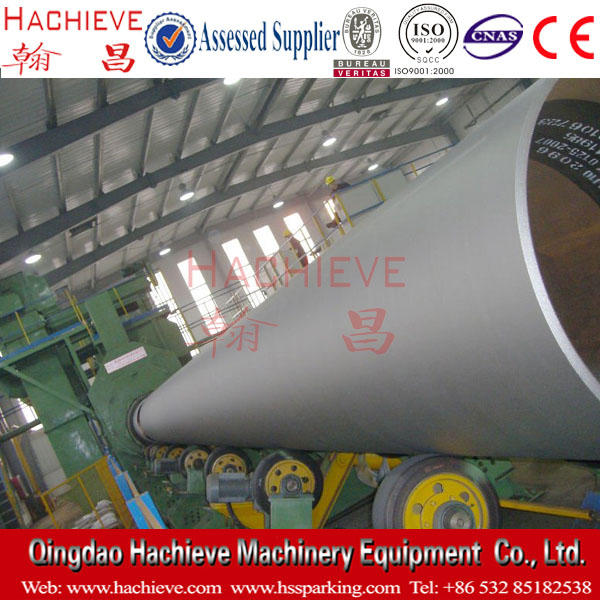

Steel pipe Shot blasting machine

Click to englarge
Steel pipe Shot blasting machine
Product Lablel: Steel pipe Shot blasting machine
Product Model: Steel pipe through the wall-peen Cleaning Machine
Product Type: Steel pipe through the wall-peen Cleaning Machine
Click: 14626
Counsulting:

VIP Free Hotline:
400-008-0910

Equipment counsulting hotline:
0532-86110910

Order:
Share:
Introduction

Steel Pipe Shot Blasting Machine / steel Tube Shot Blasting Machine, High Quality Pipe Shot Blasting Machine, Steel Pipe Shot Blasting Machine, Steel Tube Shot Blasting Machine.

External Pipe Shot Blasting Machines Capacity: 2" to 24" / 24" to 60" / 60' to 120" inch/dia.

We offer special external pipe cleaning machine from 2" to 24" / 24" to 60" / 60' to 120" inch/dia long pipes. The machine is widely use for cleaning new or used pipe for oil, gas or waterlines.

The shot blasting removes mill scale from new pipe or rust and corrosion from used pipe. The uniformly cleaned matte surface facilitates inspection and provides more bonding area for sub sequent coating.

Internal Pipe Shot Blasting Machines

Capacity: 6 to 24 inch/dia (150 mm to 600 mm)

We offer special internal pipe cleaning machine which operates on air blast principle. The lance blast nozzle is used for cleaning the interior surface of pipe.

The machine can be provided with inlet and outlet conveyor and handling system. The shot blasted surface provides excellent bonding for final coating.

The machine is widely use for cleaning new or used seamless steel tubes.


1. Steel pipe shot blasting machine technical:

Item model QGW10 QGW15 QGW20 QGW25 QGW30 QGW140 QGW200
Size of cleaning piece mm 30-100 50-150 50-200 50-250 50-300 152-1400 1000-2000
Abrasive flow rate Kg/min 2*250 2*250 2*250 2*250 2*250 2*830 2*1200
Liliting amount elevating conveyor Kg/min 30000 30000 30000 30000 30000 1200000 1200000
Separating amout of separator Kg/min 30000 30000 30000 30000 30000 1200000 1200000
Ventilation capacity M3/h 5000 5000 5000 6000 6000 10000 120000
power kw 50 50 50 50 50 115 127



2. You also can choose roller pass through type shot blasting machine to deal with your pipes.

Parameter

Q698

Q6912

Q6915

Q6920

Q6925

Q6930

Q6940

The effective cleaning width (mm)

800

1200

1500

2000

2500

3000

4000

Dimesion of inlet opening

1600*800

1200*400

1700*400

2200*400

2700*800

3200*800

4200*400

The length of cleaning workpiece (mm)

1200-12000

1200-1600

1200-12000

1200-12000

3000-12000

2400-12000

4500-18000

The speed of conveyer (m/min)

0.5-4

0.5-4

0.5-4

0.5-4

0.5-4

0.5-4

0.5-4

The thickness of cleaning steel sheet (mm)

3-60

3-60

1.5-60

3-60

3-60

3-110

4.5-100

Shot ball flow rate (kg/min)

4*120

4*250

4*250

6*250

6*250

6*360

8*360

The shot ball first loading (kg)

4000

4000

4000

4500

4500

8000

11000

Roll brush adjusting height (mm)

200

200

350

450

600

850

900

Air capacity (m3/h)

22000

17560

19000

19550

27758

28050

38000

Total power (kw)

90

78.3

113.5

156.6

204.8

224.55

293.6



3. Other steel plate and profile shot blasting and painting machine technical:

No

Name

Unit

Type1

Type 2

Type 3

1

The width of the workpiece

mm

Under 2500

under3500

Under 4500(plate)

2

Model



QXY2000,QXY2200,

QXY2500

QXY3000,QXY3200,

QXY3500

QXY3500,QXY4000,

QXY4500

3

Plate width (Max)

mm

The number after  QXY

The number after  QXY

The number after  QXY

4

Plate thickness



3~60

3~60

3~100

5

The smallest section of profile

mm*mm

60*80

60*80

------

6

The largest section of  profile

mm*mm

1000*300

1000*300

------

7

The shortest workpiece

mm

2400

2400

2400

8

Maximum workpiece

mm

12000

12000

12000

9

Conveyor speed

m/s

1~5(Note)

0.5~4(Note)

4~6(single)

10

Derusting Quality Level



ISO8501-1,1988

OR GB8923-88

(Bsa2.5)

11

Surface roughness

μm

40~70

40~70

40~70

12

Paint Film thickness

μm

15~25

15~25

15~25

13

Paint type



Quick-drying-type zinc-rich primer

14

Installed Power

kw

According to the actual situation

15

Compressed air consumption

m3/min

5~7

5~7

5~7

16

Compressed air pressure range

MPa

0.4~0.6

0.4~0.6

0.4~0.6

17

The first addition of the shot ball

T

8~10

8~10

12~16



If the above model not suit for your workpiece, please tell me your need and the following information then we will send you the best technical drawing  to you.

1. The max. Length of the workpiece.

2. The max. Width of the workpiece.
3. The max. Height of the workpiece.
4. The productity you need to blasting the workpiece ( how many T or piece per day or per month?)
5. The power supply you need ( such as 380V, 3P, 50HZ)
6. Better to send us the workpiece photo or drawing so that we can according the workshop size to design the machine.
