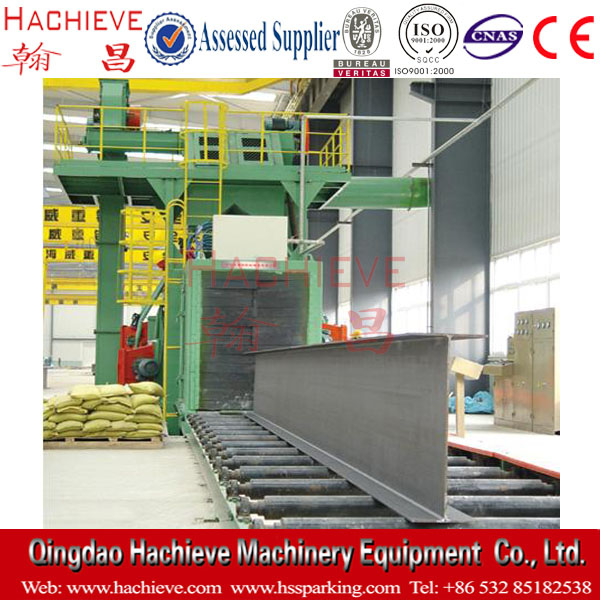

H beam Shot blasting machine

Click to englarge
H beam Shot blasting machine
Product Lablel: H beam Shot blasting machine
Product Model: QH69 series
Product Type: Pass through type
Click: 15210
Counsulting:

VIP Free Hotline:
400-008-0910

Equipment counsulting hotline:
0532-86110910

Order:
Share:
Introduction

H beam and steel structure sandblaster, Cleaning Equipments in the processing refers to the former (that is, a state of raw materials) for shot blasting the surface rust and painted with a protective coat of processing technology. After pre-treatment of steel products can improve the mechanical and corrosion-resistant metal components ability of anti-fatigue properties of steel, extending its life; but also can optimize the production process of steel surface, and is conducive to cutting machine CNC cutting and precision blanking . In addition, pre-processing of steel as a result of comparing the shape of the rules in favor of mechanical and automated spray paint rust, so the use of steel pre-treatment can enhance the efficiency of clean-up, clean-up operations to reduce labor intensity and the pollution of the environment. In recent years, as a result of the use of PLC control, automation equipment, greater emphasis has been improved.


1.Roller throuth type H beam and steel structure sandblaster Paramter:

Parameter

Q698

Q6912

Q6915

Q6920

Q6925

Q6930

Q6940

The effective cleaning width(mm)

800

1200

1500

2000

2500

3000

4000

Dimesion of inlet opening

1600*800

1200*400

1700*400

2200*400

2700*800

3200*800

4200*400

The length of cleaning workpiece(mm)

1200-12000

1200-1600

1200-12000

1200-12000

3000-12000

2400-12000

4500-18000

The speed of conveyer(m/min)

0.5-4

0.5-4

0.5-4

0.5-4

0.5-4

0.5-4

0.5-4

The thickness of cleaning steel sheet (mm)

3-60

3-60

1.5-60

3-60

3-60

3-110

4.5-100

Shot ball flow rate (kg/min)

4*120

4*250

4*250

6*250

6*250

6*360

8*360

The shot ball first loading (kg)

4000

4000

4000

4500

4500

8000

11000

Roll brush adjusting height (mm)

200

200

350

450

600

850

900

Air capacity(m3/h)

22000

17560

19000

19550

27758

28050

38000

Total power (kw)

90

78.3

113.5

156.6

204.8

224.55

293.6


     Beam shot blasting machine belongs to roller-type shot blasting machine, mainly used in buildings, bridges, and other industries. Used for surface rust cleaning of large size steel structure and H-beam. We can manufacture large non-standard cleaning machine according to customers’ different requirements.
