The Company set many years of experience in the design, development and efficient planetary rotor and fixed rotor type sand, molding sand performance detector, the old sand humidifier sand handling equipment can provide 20-180 tons / hour of mechanized sand clay sand production lineturnkey projects and single machines. MC series of powerful rotor type sand for casting, refractory and ceramics, glass, food and other industries. For intermittent operation.
一、The machines using: machine is mainly used for large and medium-sized foundry mixed various type, core sand, glass, ceramics, refractories and other industries can also be used in variety of powder mixed. The working principle of the low-speed drive three scraper promote mixed materials for radial machine box and are forward while the molding sand movement mixed, high-speed rotation of the rotor blades, both impact force imposed on the molding sand and tie with the scraper a shear force of molding sand, the rapid diffusion and strong friction generated between the sand material, so as to achieve the sand high efficiency, good quality purpose.

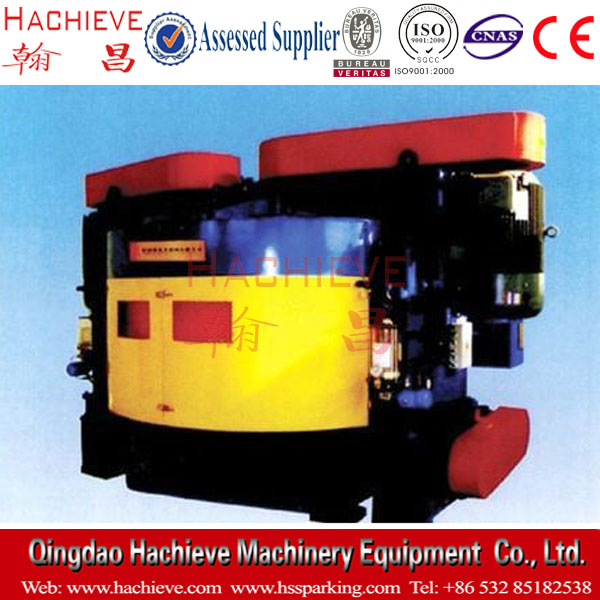

二、Models and parameters The machine structure: native organism, the drive mechanism, the mixing mechanism, and the blade and other components. The main motor and a speed reducer connected through a speed reducer to drive the main bearing is rotating, the spindle and thereon a crosshead driven by blade rotation, the blade to promote the forward movement of the molding sand. Both groups rotor institutions mounted symmetrically on the circuit cast to establish its own stand-alone systems. Motor directly through a narrow V-belt drive rotation of the rotor, and the scraper with the completion of the molding sand impact shear and friction.
Model
|
Dia.(mm)
|
Amount of added sand (m3)
|
Power(Kw)
|
Efficiency(m3/h)
|
Weight(Kg)
|
MC22-40
|
2200
|
1.4
|
220
|
35-40
|
12
|
MC25-75
|
2500
|
2.5
|
290
|
60-75
|
15
|
MC29-100
|
2900
|
3.3
|
340
|
85-100
|
20
|
