- Introduction

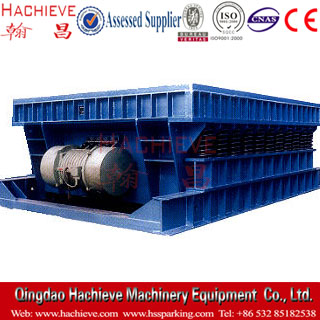

L12 series single plasmid shakes
Features: The main material used in all manganese steel plate welded structure, the overall annealing, reliable performance and smooth, parking, energy-saving, low running costs, the basic dynamic load small, stand-alone carrying capacity, large amplitude, the effect of falling sand. Vibration motor with domestic brand-name products, its fixed clamping wedges, and dedicated dual sets of anti-retreat locking nut tightening.
|
Model
|
Payload(T)
|
Table size(mm)
|
Installed power（KW）
|
Maximum exciting force(KN)
|
|
L121
|
1
|
2000x1000
|
2.2x2
|
30x2
|
|
L122
|
2
|
2000x1000
|
2.2x2
|
30x2
|
|
L123
|
3
|
2000x1800
|
3.7x2
|
50x2
|
|
L124
|
4
|
2200x2000
|
5.5x2
|
75x2
|
|
L125
|
5
|
2500x2000
|
5.5x2
|
75x2
|
|
L128
|
8
|
2500x2000
|
7.5x2
|
100x2
|
|
L1210
|
10
|
3000x2500
|
9.5x2
|
130x2
|
|
L1215
|
15
|
3000x3000
|
12.0x2
|
160x2
|
|
L1220
|
20
|
4000x3000
|
8.5x4
|
120x4
|
|
L1225
|
25
|
4000x3000
|
9.5x4
|
130x4
|
|
L1230
|
30
|
4000x3000
|
12.0x4
|
160x4
|
|
Note: shakeout machine table size, payload can be designed and produced according to user requirements.
|
|
